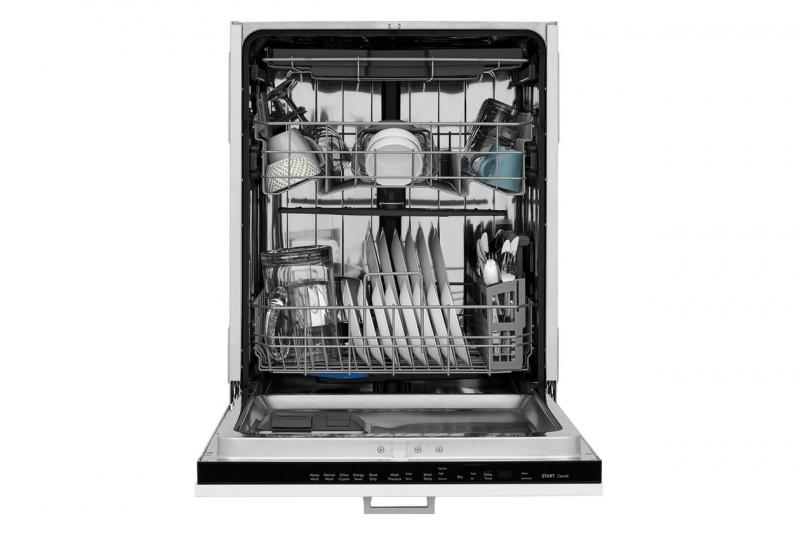

24" Frigidaire Panel Ready Built-In Dishwasher - FDSR4501AP

Model # : FDSR4501AP

Features

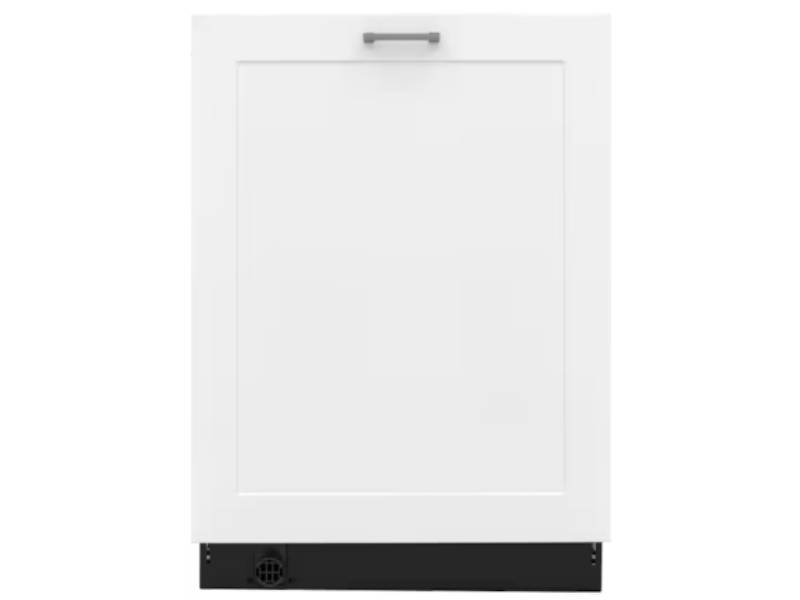

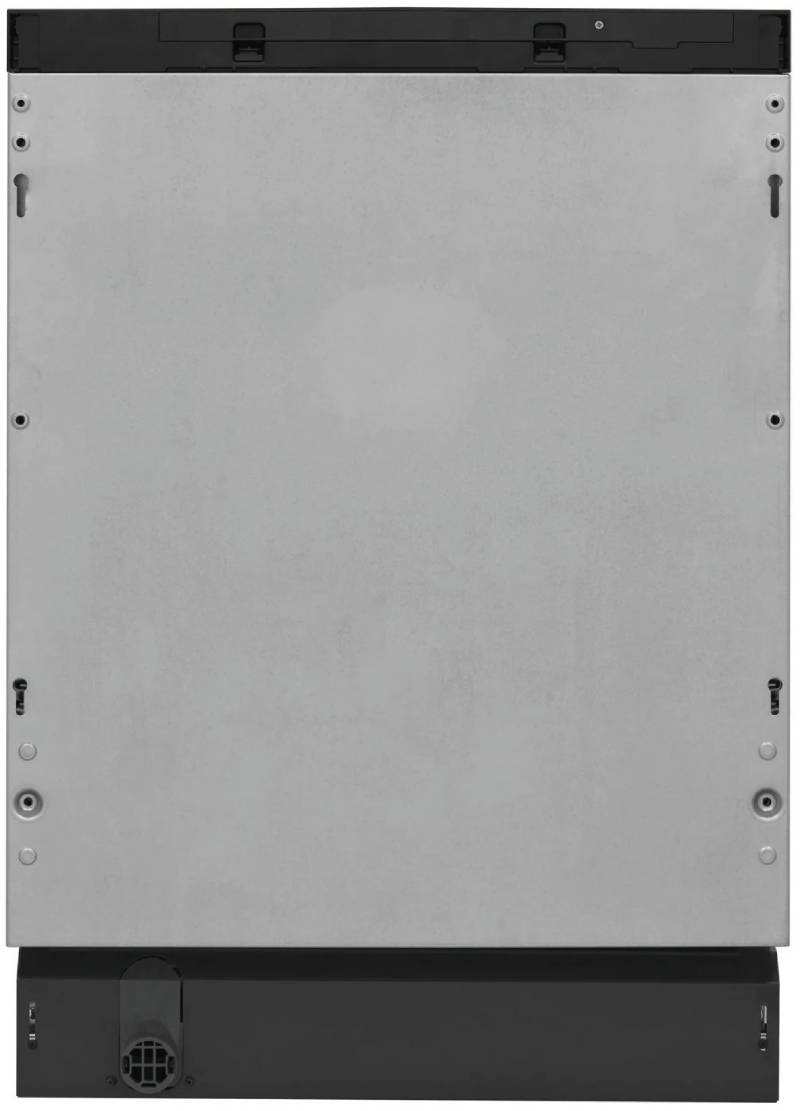

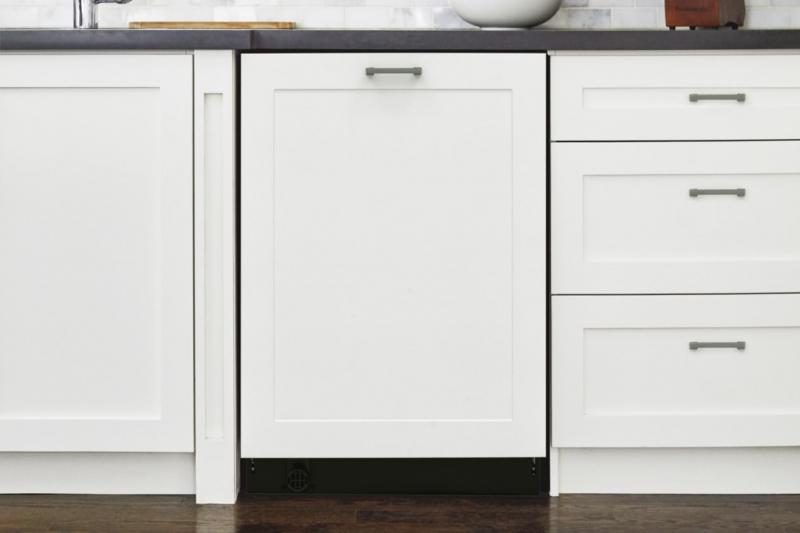

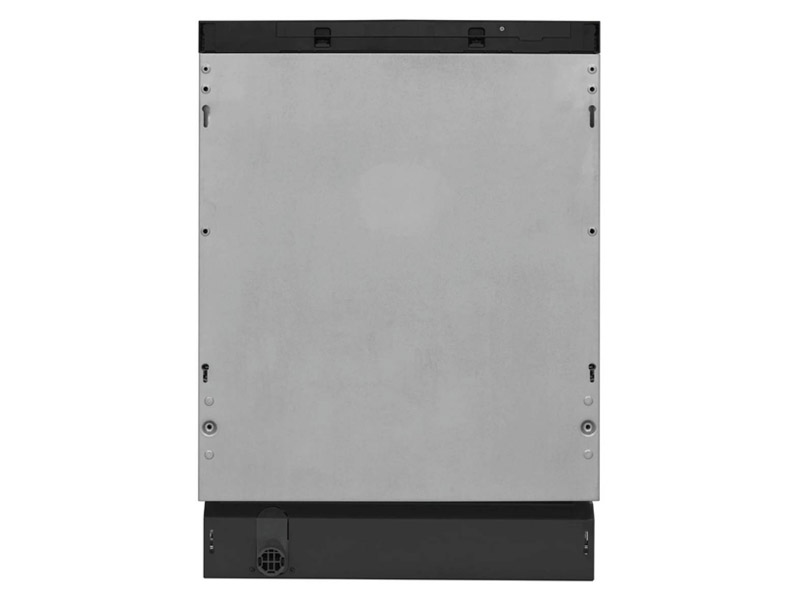

Panel Ready Design

Install a custom front panel and handle (panel and handle not included) over the dishwasher door to effortlessly create a built-in look that blends into your kitchen cabinetry.

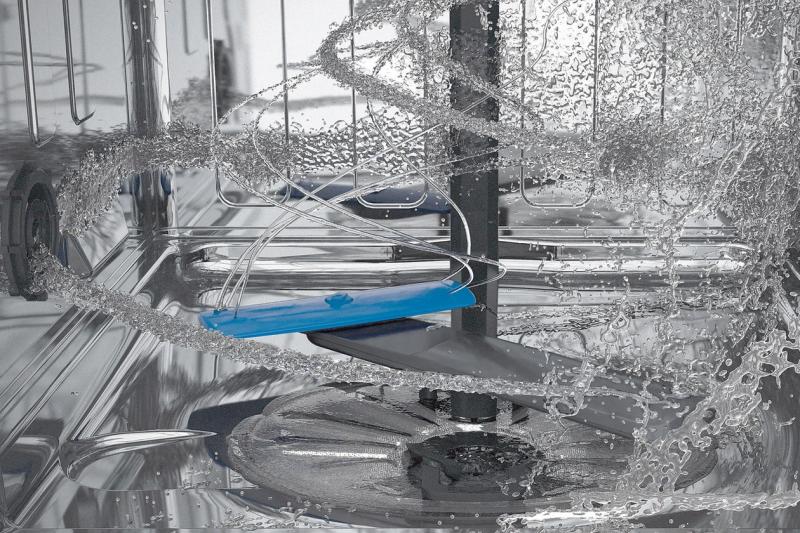

Thorough Cleaning with BladeSpray Arm

Unlike traditional spray arms, our BladeSpray arm rotates in two directions, so you get better water coverage that reaches every corner.

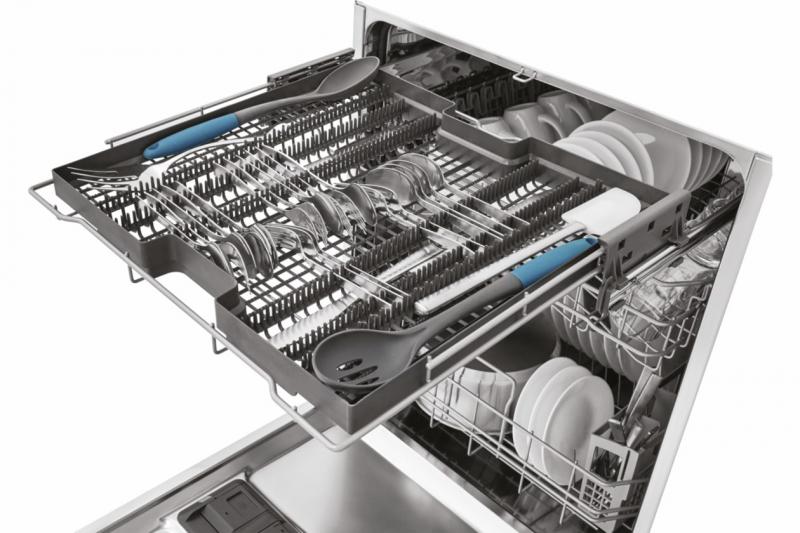

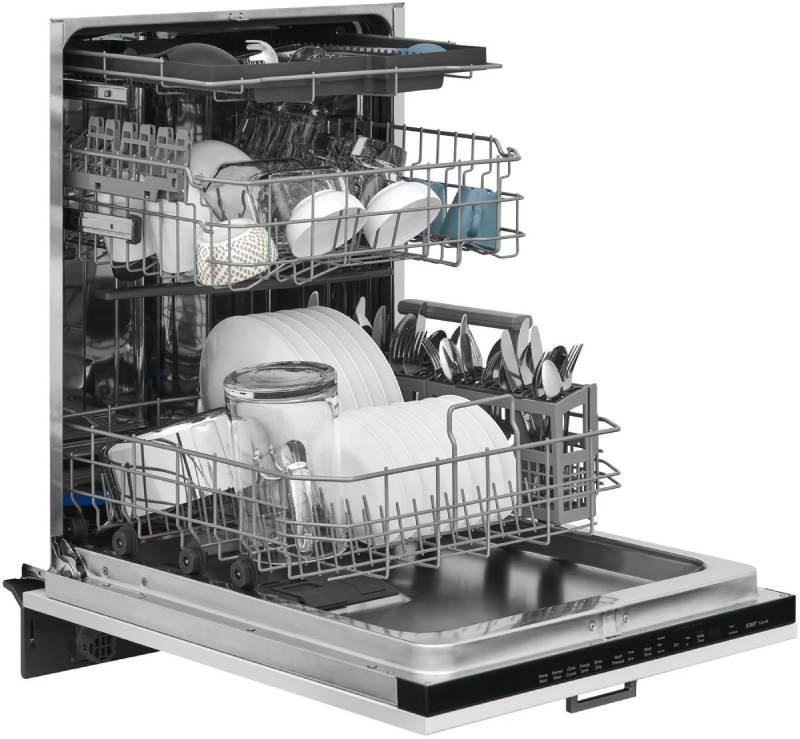

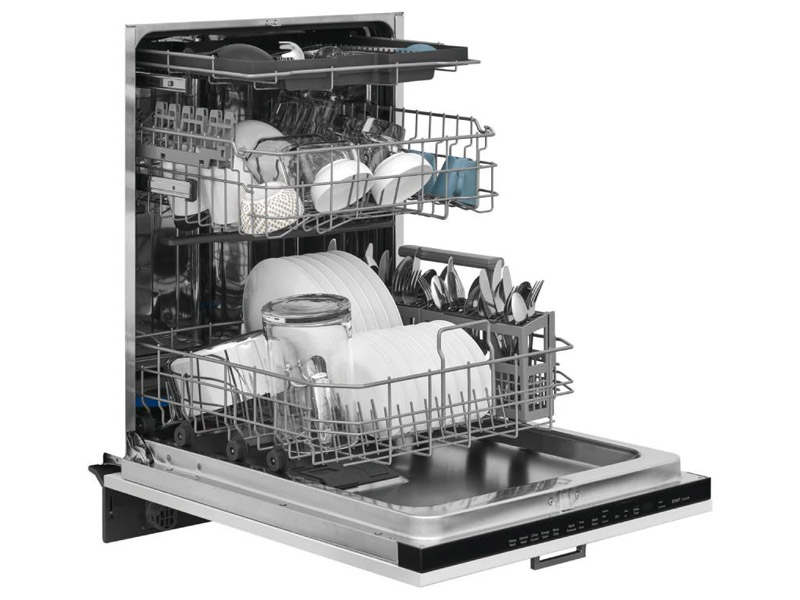

Three Level Dishwasher

Save time loading and unloading and fit more with a third level rack that easily fits silverware, cooking utensils and tools.



Remarkably dry dishes

With the fan assisted EvenDry, air flow is evenly circulated and moisture is removed for clean, spot-free dishes.



DishSense Technology

Skip pre-rinsing with our DishSense sensor technology that adjusts cleaning performance based on the soil level of your dishes.



NSF Certified Sanitize Option

Sanitize option removes 99.9% of common household bacteria. 1

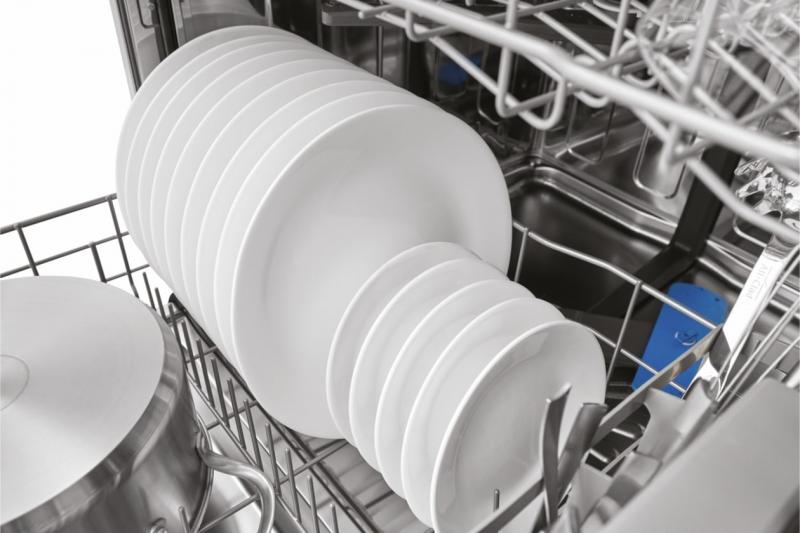

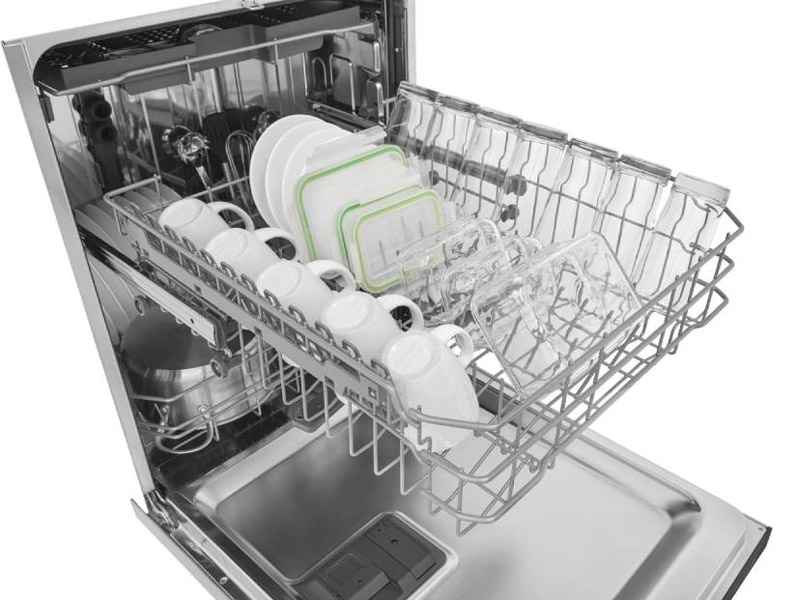

Clean Dishes of All Sizes

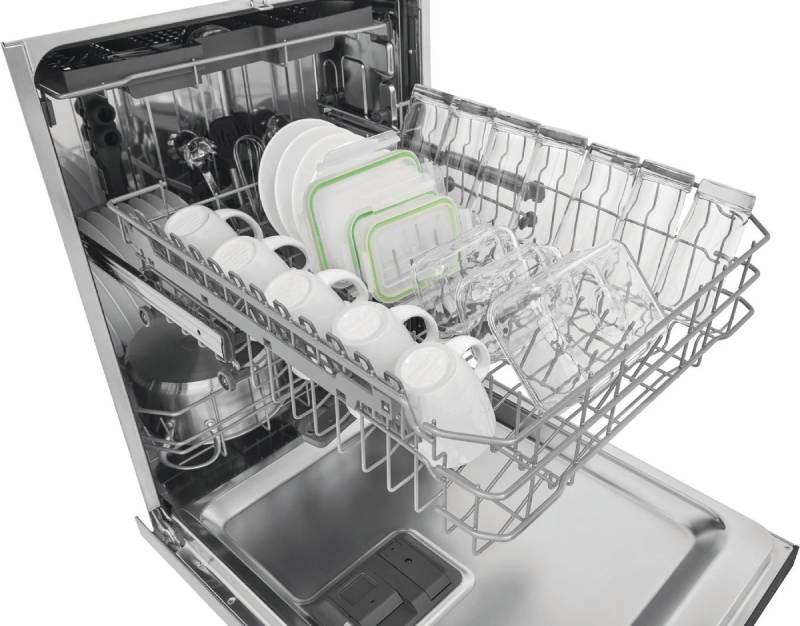

Clean even your largest dishes and bakeware with an adjustable upper level rack that lets you fit more in the bottom rack.



Quiet Operation

So quiet your dishwasher won't disturb you, even if you run it while you're in the room--runs at 49 dBA.



ENERGY STAR Certified

Maximize your energy and dollar savings with ENERGY STAR Certified Appliances.



Zero Waste to Landfill Factory

This dishwasher was assembled in a certified zero waste to landfill facility. Electrolux's goals is for all of our production facilities to be certified by 2025. 2


Certifications and Approvals
ENERGY STAR Certified Yes
CEE Tier Tier 1
Installation
Number of Leveling Legs 3
Certifications and Approvals
ADA Compliant No
ELECTRICAL SPECIFICATIONS
Voltage Rating 120 V
Amps @ 120 Volts 15 Amps
Dimensions and Volume
Depth With Door Open 50 1/4
Depth 24 1/4
Width 24
Maximum Height 35 3/4
Minimum Height 33 3/4
CONTROLS
Delay Start Hours 1-24 Hours
Digital Display No
Exterior
Panel Ready Yes
General Specifications
Warranty - Labor 1 Year
Warranty - Parts 1 Year
CONTROLS
Control Location Top
General Specifications
Prop 65 Label No
Product Weight 85 lbs
Sound Level 49 dBA
Annual Energy 240 kWh
Third Level Rack
Third Level Rack Yes
UPPER RACK
Targeted Wash Zone No
Stemware Holder Yes
Rack Type Deluxe
Rack Coating Nylon
Cup Shelf Yes
Lower Rack
Rack Coating Nylon
Rack Type Deluxe
Number of Silverware Basket Lids 2
Dishwasher Options
Washing Temperature - Sanitize Yes
Lower Rack
Number of Silverware Basket 1
Dishwasher Options
Start/Cancel Yes
Washing Temperature - High Yes
Washing Temperature - Normal Yes
High Temperature No
Drying System Even Dry
Dry - Heat Yes
Dry - Max No
Dry - Air Yes
Dishwasher Cycles
Normal Yes
Rinse Only Yes
Number of Cycles 5
Energy Saver Yes
Heavy Yes
DISHWASHER
Water Pressure 120 psi
Dishwasher Cycles
China Crystal Yes
DISHWASHER
Wash System Direct Feed
Tub Material Stainless Steel
Wash Levels 5
Tub Design Tall Tub
Tub Color Stainless Steel
Upper Spray Arm Spray Arm
Middle Spray Arm Bi-Beam
Lower Spray Arm Blade
Smart Soil Sensor Yes
Place Setting Capacity 14
Rinse Aid Dispenser Yes
Motor Speeds Multi-Speed
Filtered Water 100 %
Hard Food Disposer or Filtration Yes
Filter Trap Removable
Filter Material Stainless Steel
Detergent Dispenser Yes
Automatic Temperature Control Yes
Certifications and Approvals
UL Listed Yes
cUL Listed Yes
ETL Listed Yes
NSF Certified Yes
